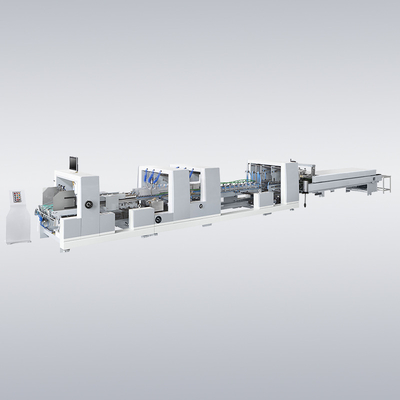

ZH-M1850 4/6 Automatic Food Corner Folder Gluer Carton Box Folder Corner Gluer Machine

ZH-M1850 4/6 Corner Automatic Folder Gluer

1. Characteristics:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

2. Main technical parameter:

 5.Feature:

1.Feeder Section

Friction feeder. Independently driven by inverter.

Adjustable electronic pile vibrator.

Lateral feed gates fully adjustable to the width of the blank.

Extendable rear pile support for long boxes.

2.Paper Alignment System:

Independent section that registers the blank to one side ensuring a perfect parallelism before entering the pre-folding or gluing sections.

Independently driven by motor.

Possibility to register on any side of the machine.

Fast and easy setup.Configuration reducer, different boxes when the conversion, the reducer with electric regulation

2.Pre-fold Section:

The pre-fold section has the advantage to make the box more plain and easy to open,even in some case the scoring is not very well.

Left hand glue flap pre-folder up to 180º.

3rd crease pre-folding set up to 135º.

1st and 3rd crease openers.

Configuration reducer, different boxes when the conversion, the reducer with electric regulation

4.Bottom Lock Section

Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

Independently driven by motor.

Complete set of folding hooks and helixes for smooth and accurate folding of front flaps

Adjustable hook tension.

Fast and easy setup

Configuration reducer, different boxes when the conversion, the reducer with electric regulation.

5.Down Gluing section

Two lower (left and right) gluing tanks.

Easy to remove and clean.

6.Folding Section

Independently driven by motor.

Smooth and accurate folding of 2nd and 4th creases.

Outer folding belts adjustable up to 180º with variable speed controlled by inverter

Easy accessibility.

Configure the CVT to adjust the belt speed,Make the box more neat

7.Trombone  Section

Independently driven by motor.

Upper and lower drive mechanism for length adjustment.

Allows a perfect understack or overstack stream of boxes.

Equipped with automatic belt tension-adjusting system.Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing an aligned flow.

8.Press Section

Independently motorized pneumatic press section.

Upper section moves back and forward through a motorized system, allowing different box length.

Pneumatic pressure regulation.

9.Back-folding device

Motorized and untimed electronic back folding system with intelligent servo-motor technology.

Two independent servo motors, one for each shaft.

Versatile and easy to setup.
