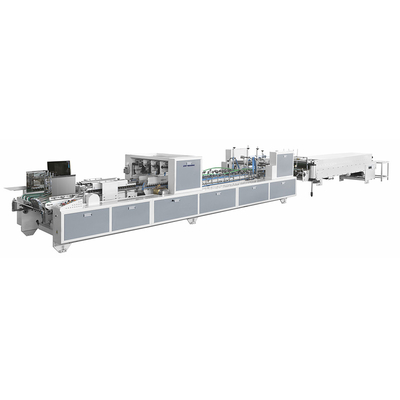

ZH-A780 Automatic High Speed ​​Four And Six Carton Box Folder Corner Gluer Machine Food

ZH-A780 4/6 corner folder gluer

1. Characteristics:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

2. Main technical parameter:

4.Machine configuration

5.Feature:

1.Feeder Section

With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Feeding knifes are equipped with pneumatic mechanism for smoother feeding.

Configure the display, real-time monitoring of the paper is normal

2.Paper Alignment System:

Automatic alignment system to correct the paper feeding,avoiding the paper going to sides.

Configure the transmission  to adjust the belt speed,Make the box more neat

3.Pre-fold Section:

The pre-fold section has the advantage to make the box more plain and easy to open,even in some case the scoring is not very well.

Left hand glue flap pre-folder up to 180º.

3rd crease pre-folding set up to 135º.

1st and 3rd crease openers.

4.Bottom Lock Section

Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

5.4&6-corner device (Back fold)

Motorized and untimed electronic back folding system with intelligent servo motor technology.

Servo-motor of back folding device

Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

6.Down gluing section

Two side gluing tank.(right and left)

Easy to remove and clean

7.Folding Section

Equipped with speed variator for belts,ensure the folded boxes parallel and in good order

Fast,convenient adjustment and operation can fold boxes perfectly

The middle up and down transmission module can fold boxes synchronously or alternately

Configure the embossing wheel to adjust the belt speed so that the cartons are folded and aligned

8.Trombone  Section(option)

 Continuous and automatic box collection mechanism that ensures a neat transfer to the

Press section,    guaranteeing a wellaligned flow.

Configure the Siemens touch screen computer speed can be adjusted

9.Press section

Manual and automatic speed variation in coordination with a photocell.

7.Delivery : 40 days after receive deposit

8.Packing : Film packing and loaded in 1*40GP

9.Payment terms: 1) T/T.30% deposit in advance, and 70% balance before shipped.

10.Warranty period:12 months

Buyer need to pay travel expenses(ticket),hotel accommodation,food .

Supplier will send one engineer to customer’s factory for installation and training ,according 100$ salary every day.
